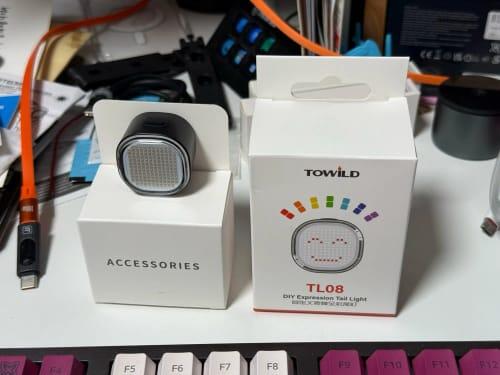

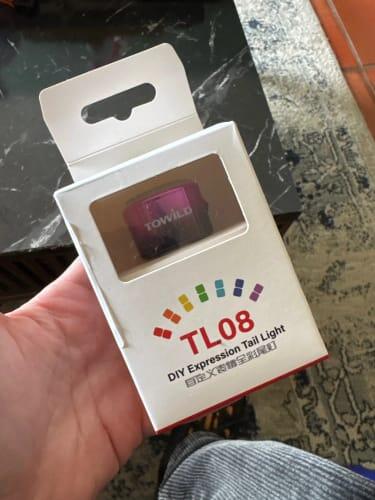

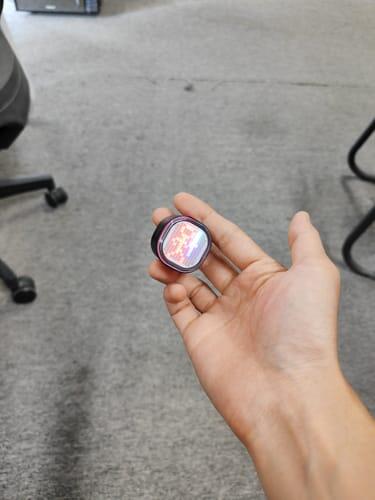

Model: TL08 Customizable LED Tail Light
Waterproof: IPX6 (heavy rain resistant)
Dimensions: 28(L) × 35(W) × 35(H) mm
Weight: 25g (excluding mount)
Battery Life: 6-30 hours*

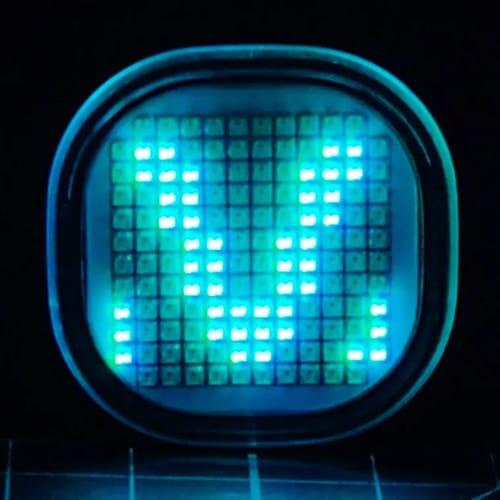

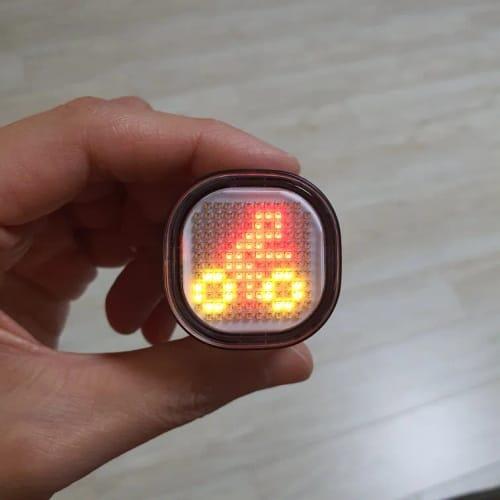

Display: 140px (12×12 matrix with corner cutouts)
*Runtime varies by animation complexity/ambient temperature
User Manual
Basic Operation
-
Power on/off: Hold button for 2 seconds (displays remaining battery)
-
Cycle modes: Single click to toggle presets
-
Mode memory: Retains last used setting
⚠️ Always check battery level before rides
APP Features (TOWILD App)
*(Scan QR code → iOS 12.1+/Android 7.0+ required)*
Customization
🎨 Pixel Art Designer
-
Create custom emojis/patterns
-
Adjust colors, brightness & blink speed
-
Replace built-in animations
👥 Group Sync Mode
-
Sync animations across multiple TL08 lights (30m range)
-
Note: All lights must match brightness/frequency settings
Smart Functions
🛑 Auto-Brake Detection
-
High-intensity alert when decelerating (customizable duration)
💤 Motion-Activated Sleep
-
Auto standby after inactivity (adjustable timer)
⚠️ Legal Compliance: Configure colors per local traffic laws (red-only or multicolor)
Technical Notes
-

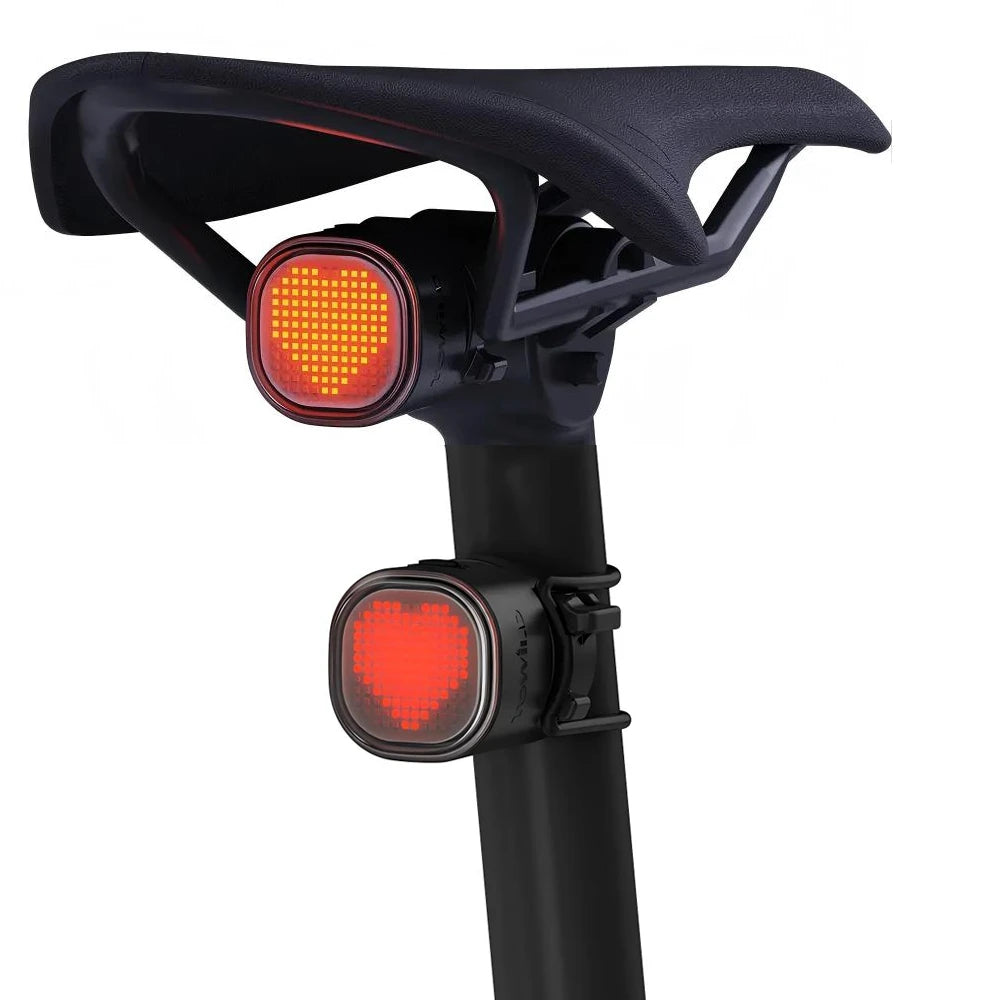

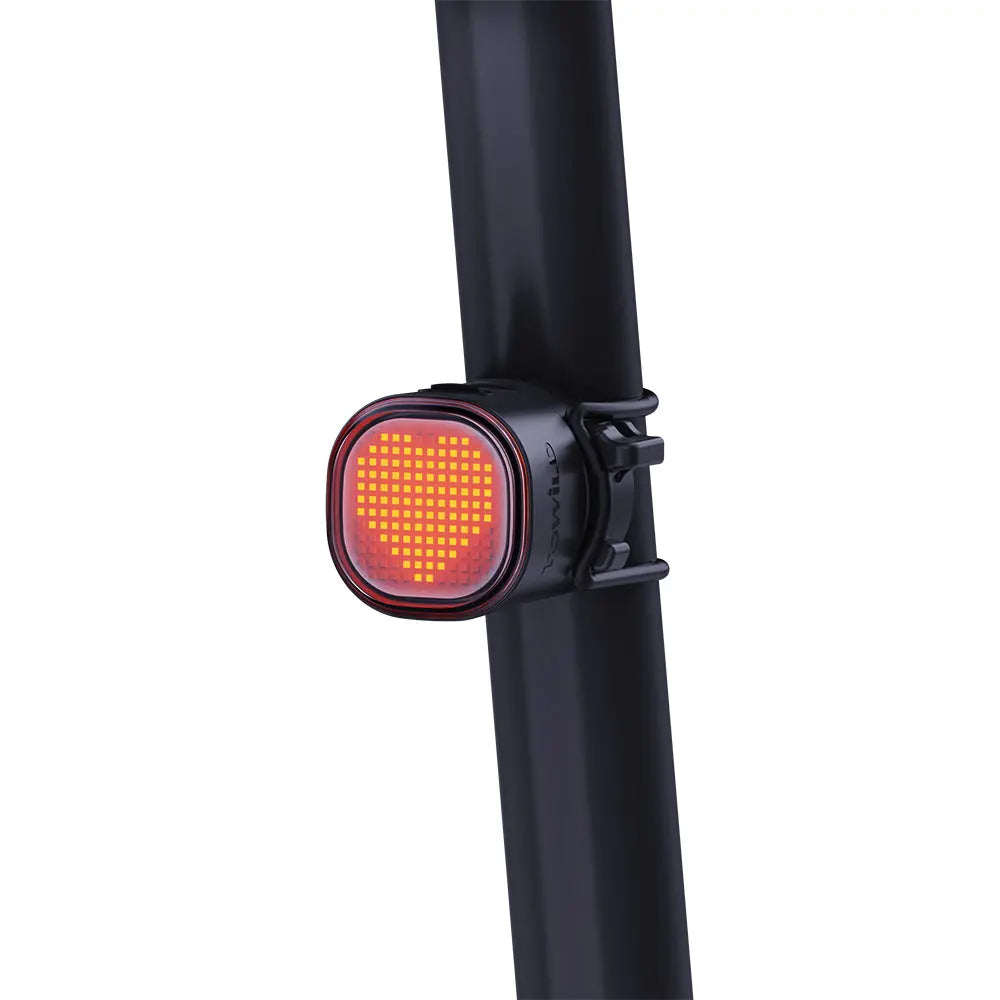

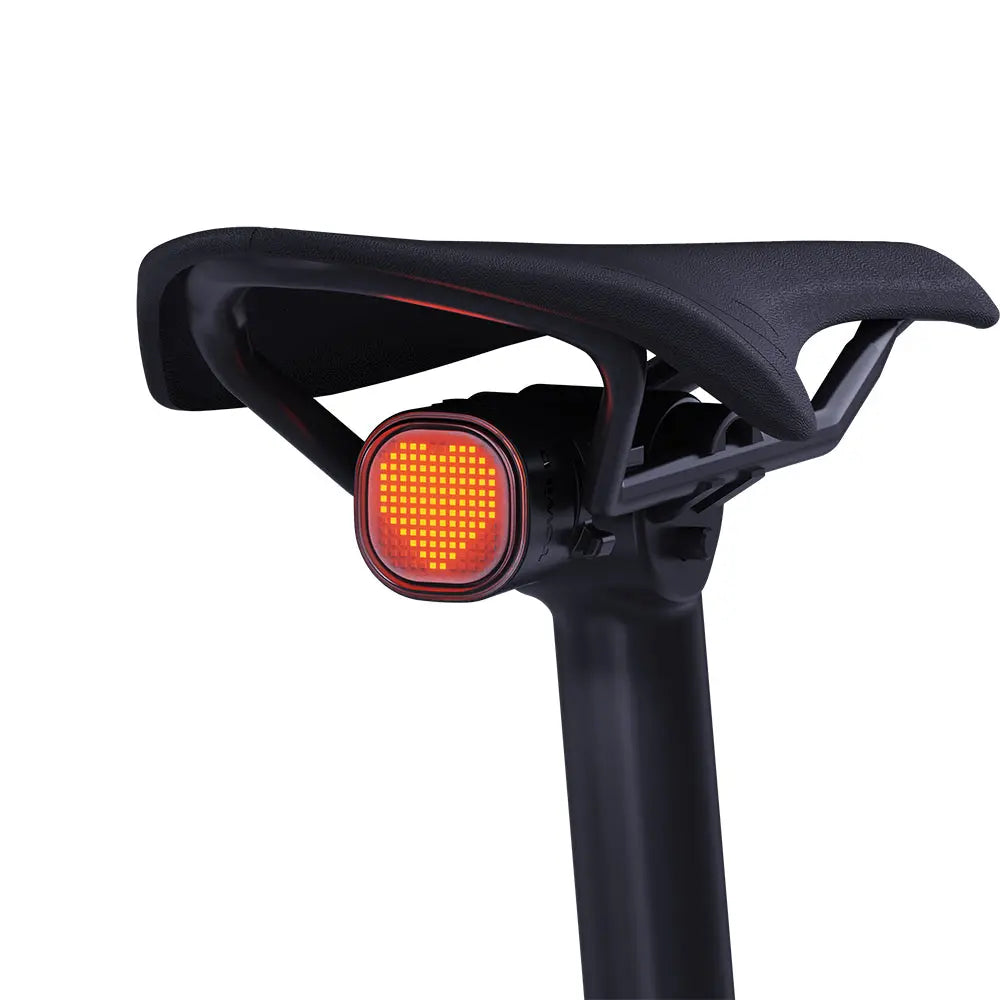

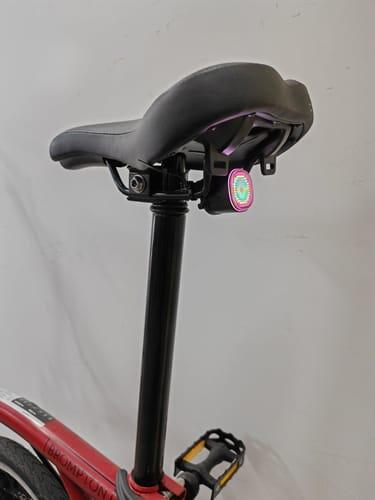

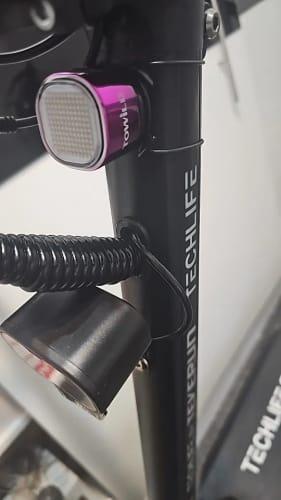

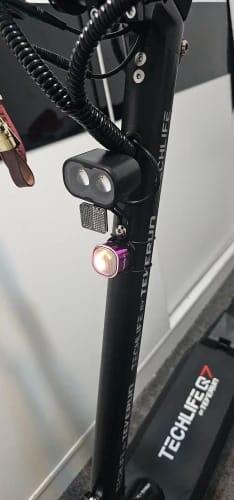

Mounting: Compatible with standard seatpost/seatstay mounts
-

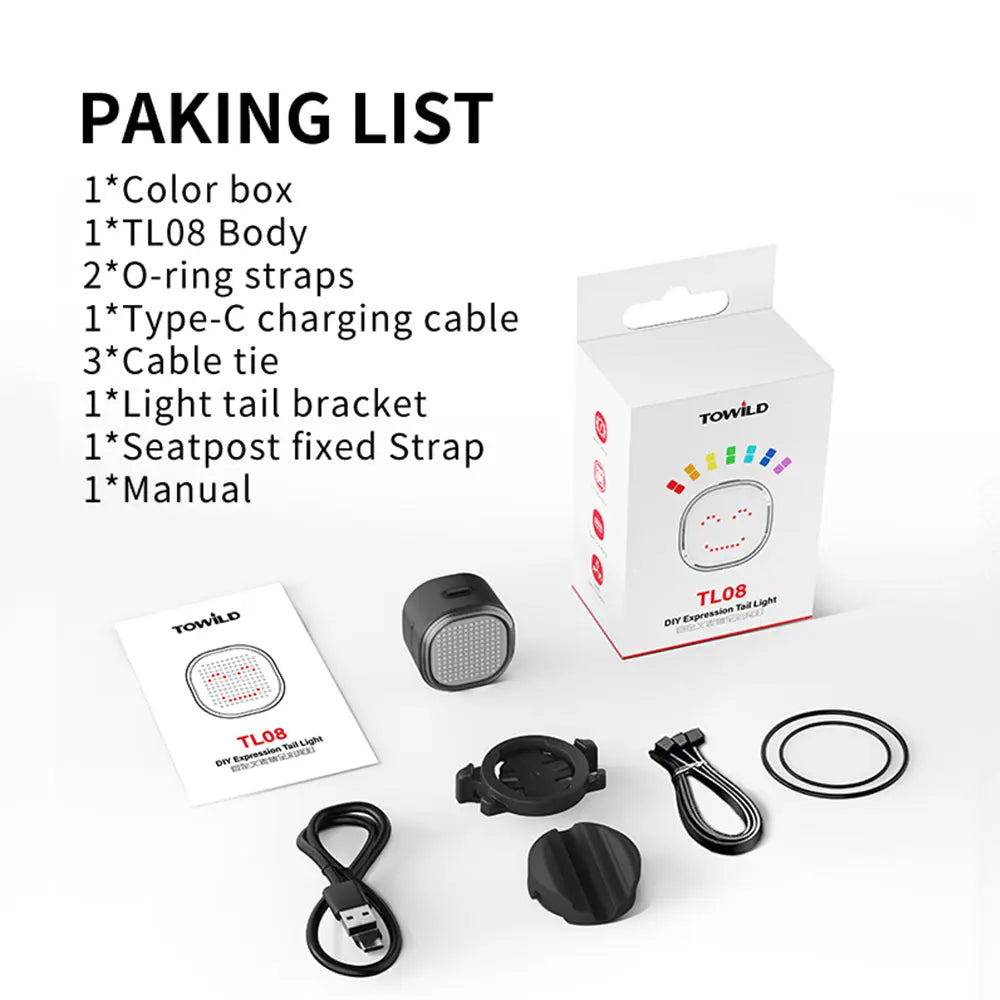

Charging: USB-C (cable included)
-
Visibility: 140° wide-angle viewing
