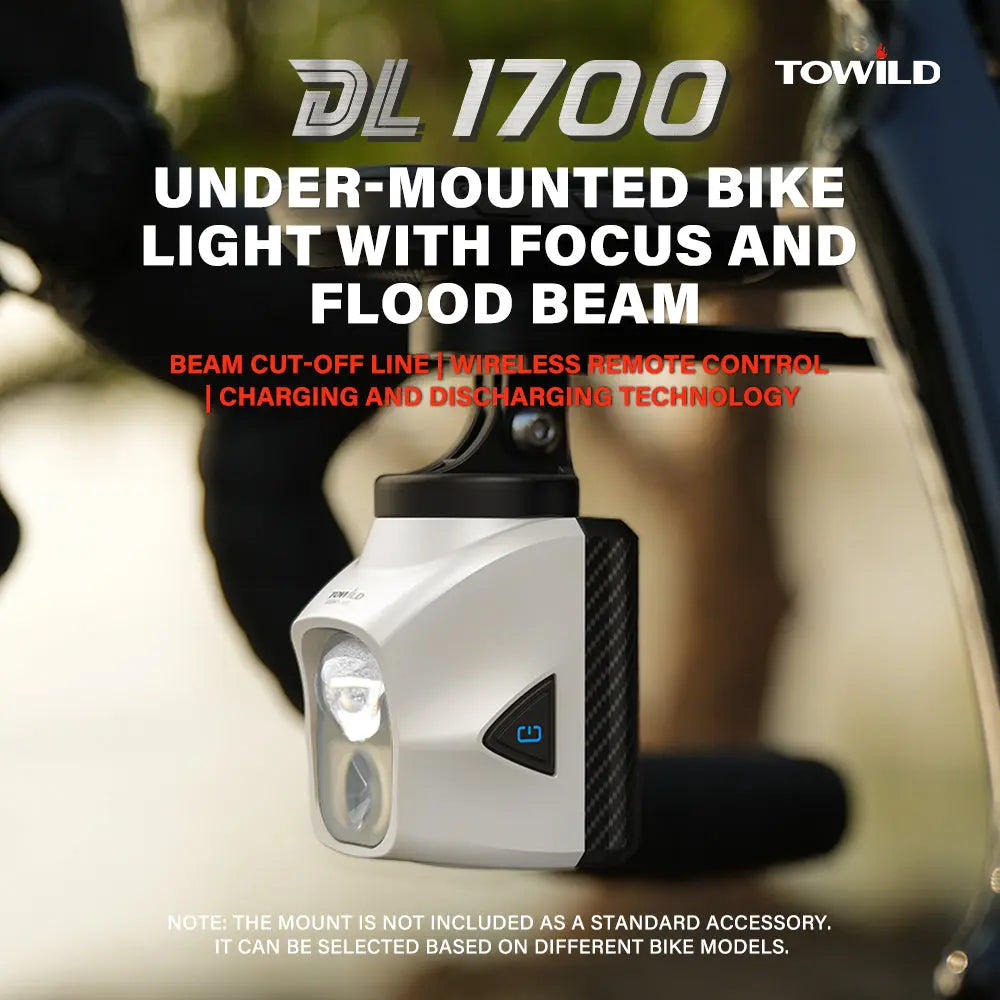

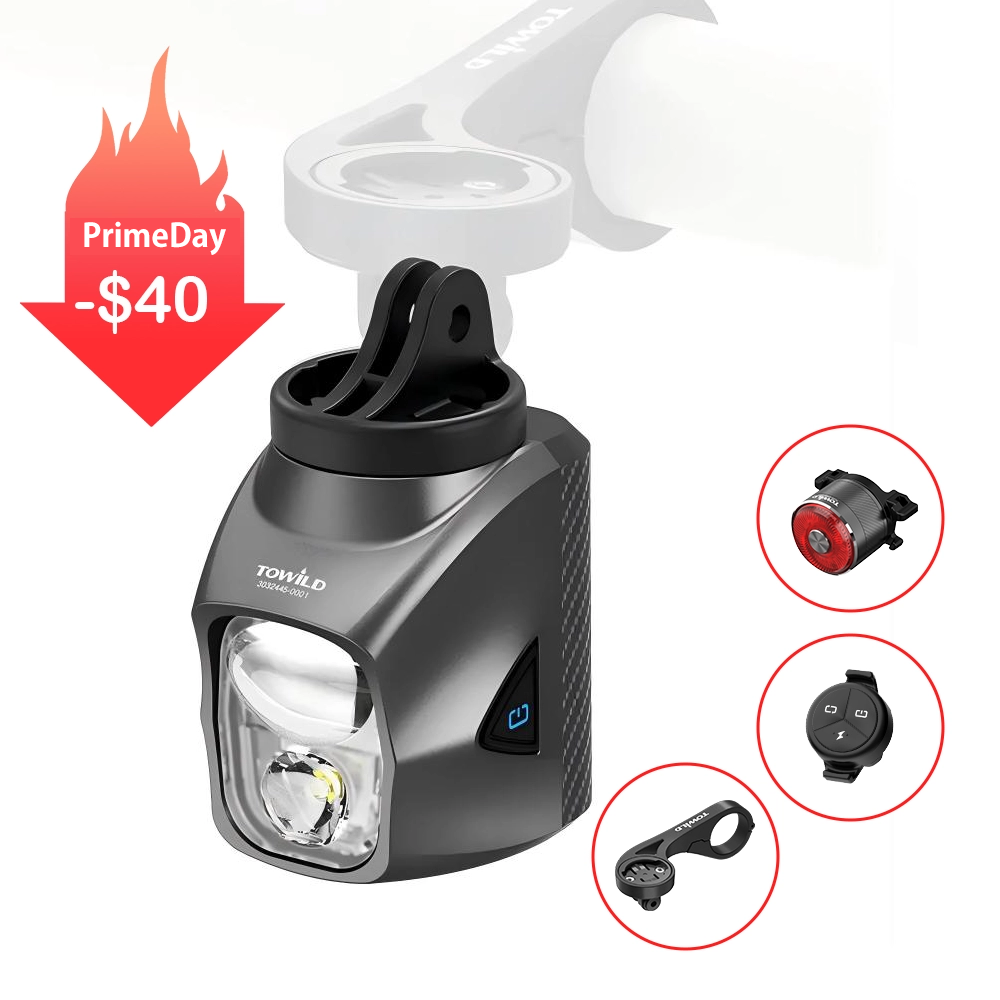

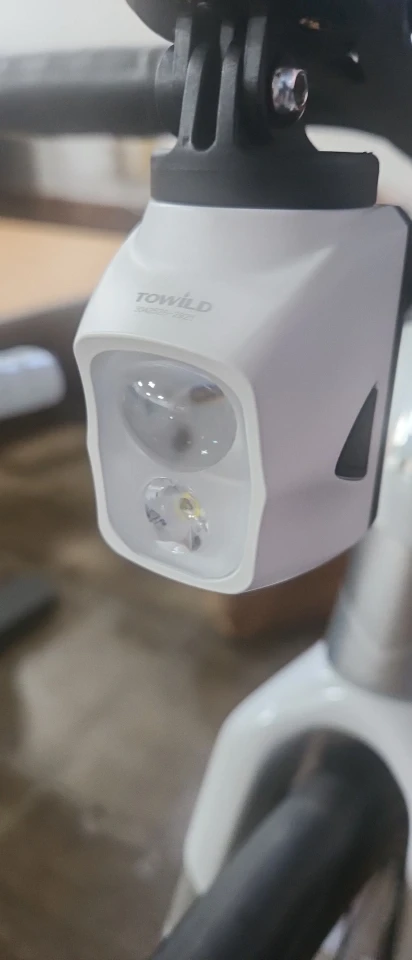

The DL1700 is a dual-beam (high/low) mountable smart bike light featuring 200m max throw and TYPE-C charge/discharge technology. With a massive 4000mAh battery (18h max runtime), wireless remote control, and IPX6 waterproofing, it delivers professional-grade illumination for road cycling and mountain biking.
Key Features
-
USA CREE LED + 4000mAh Li-ion battery
-

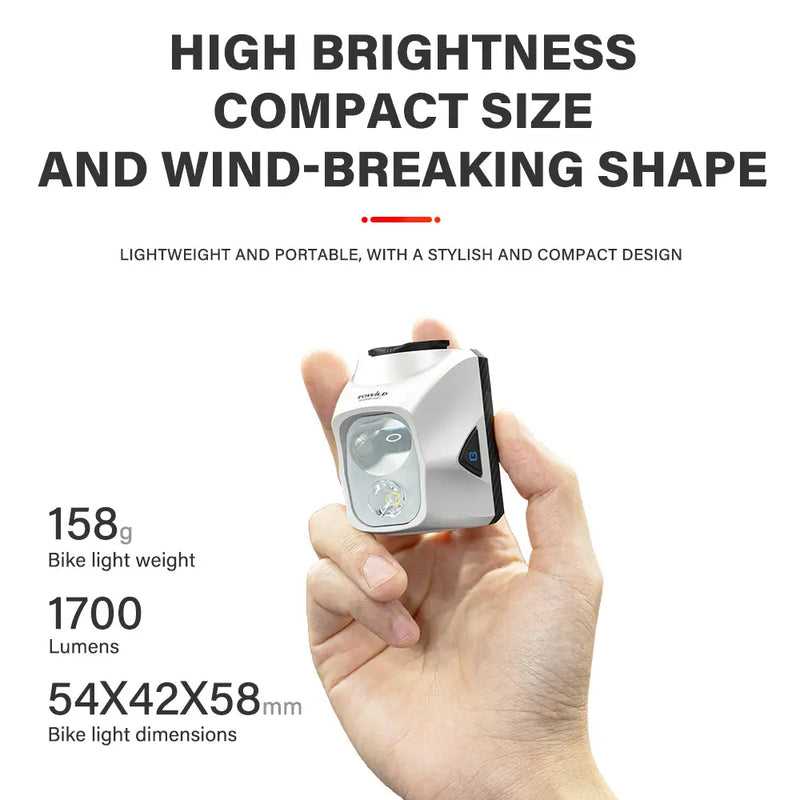

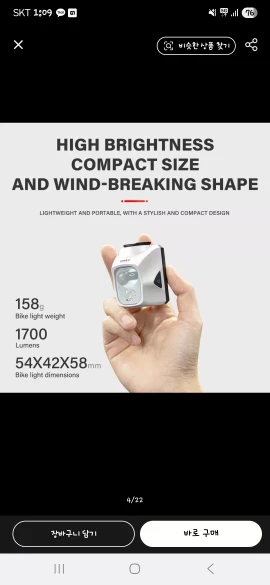

Compact size: 54mm(L) × 42mm(W) × 58mm(H)
-

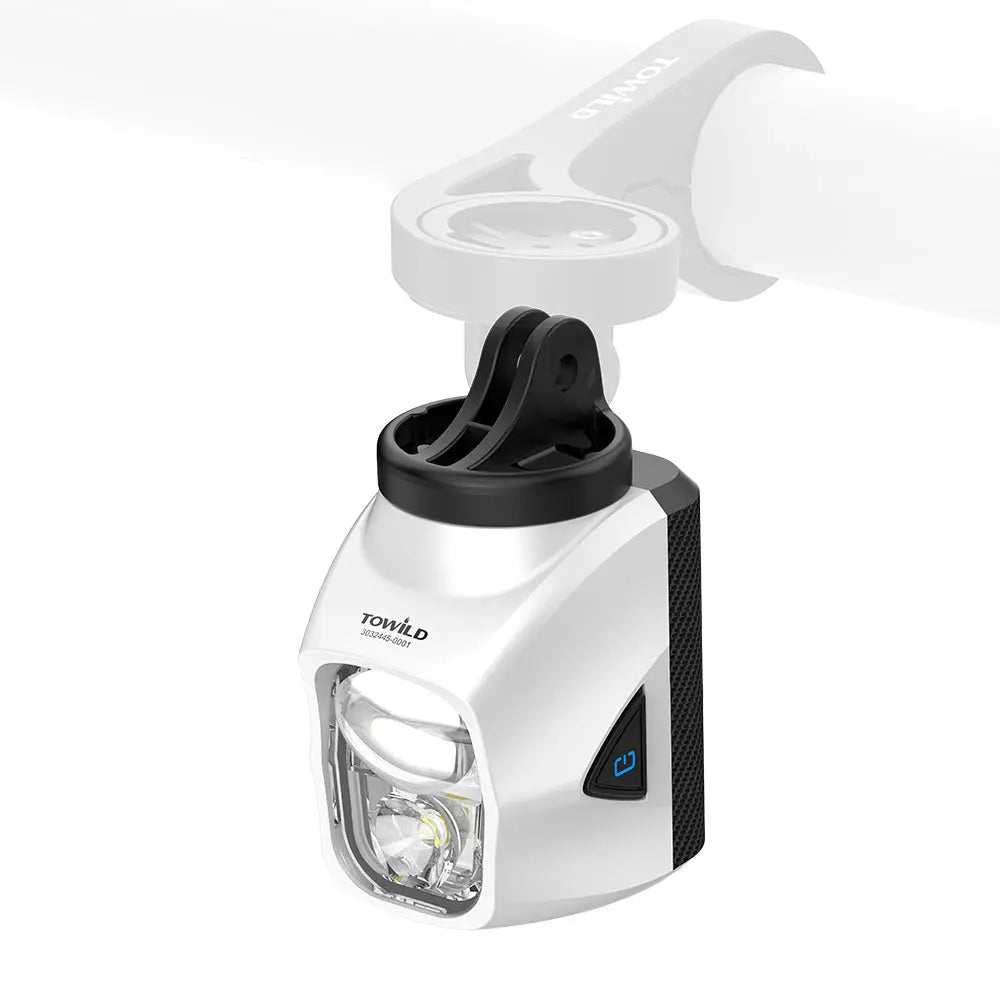

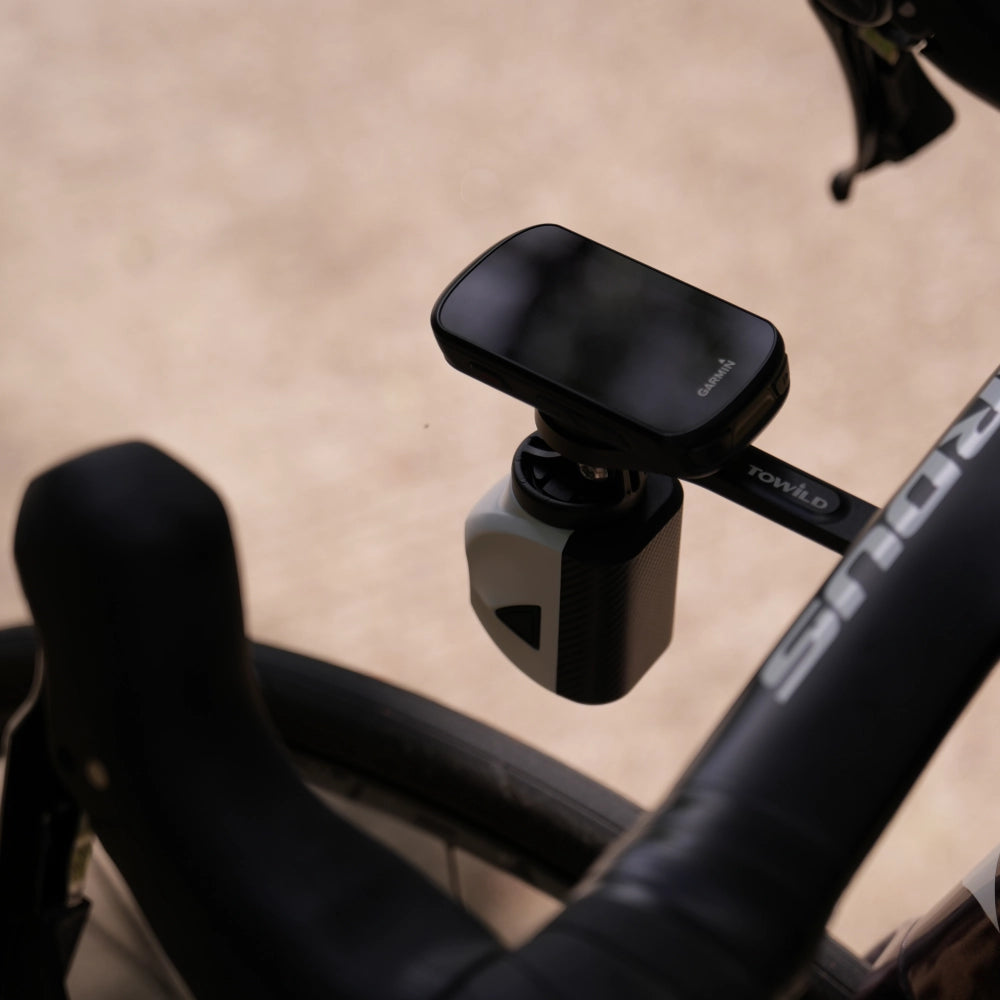

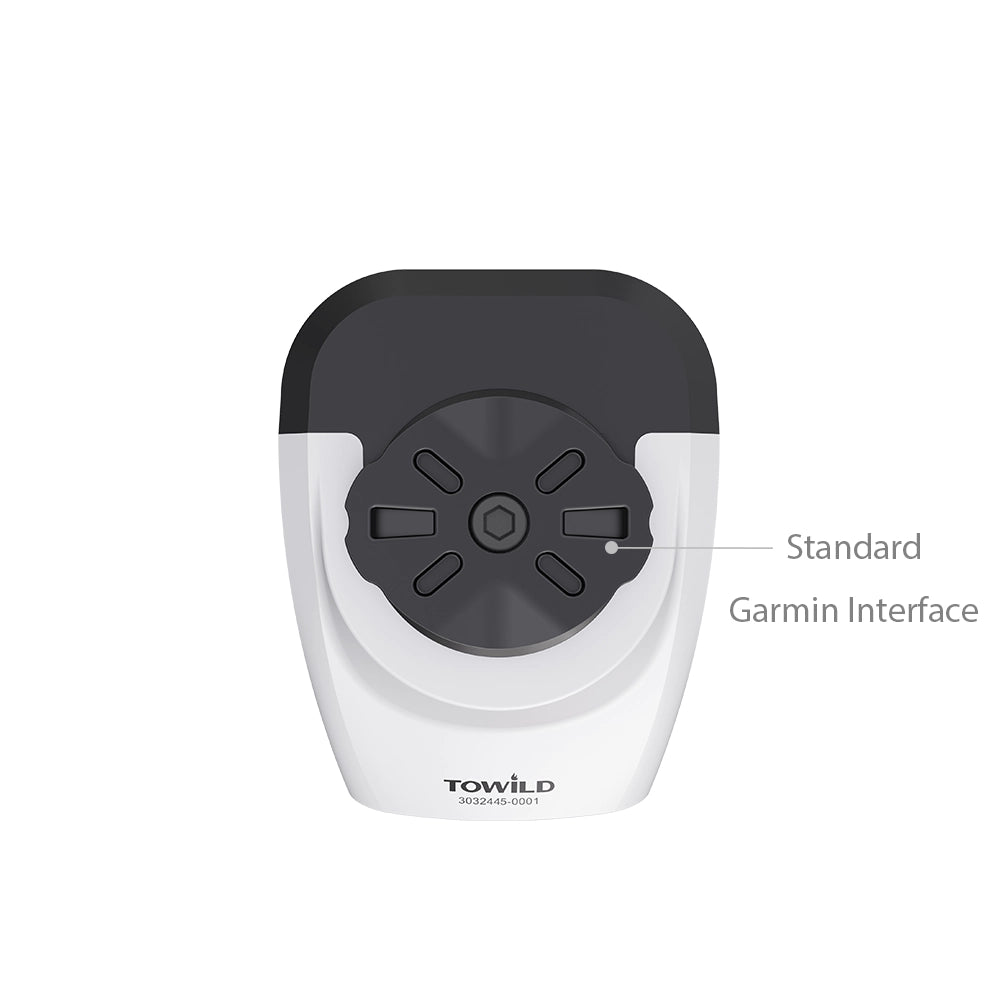

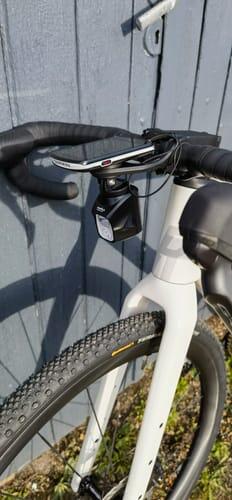

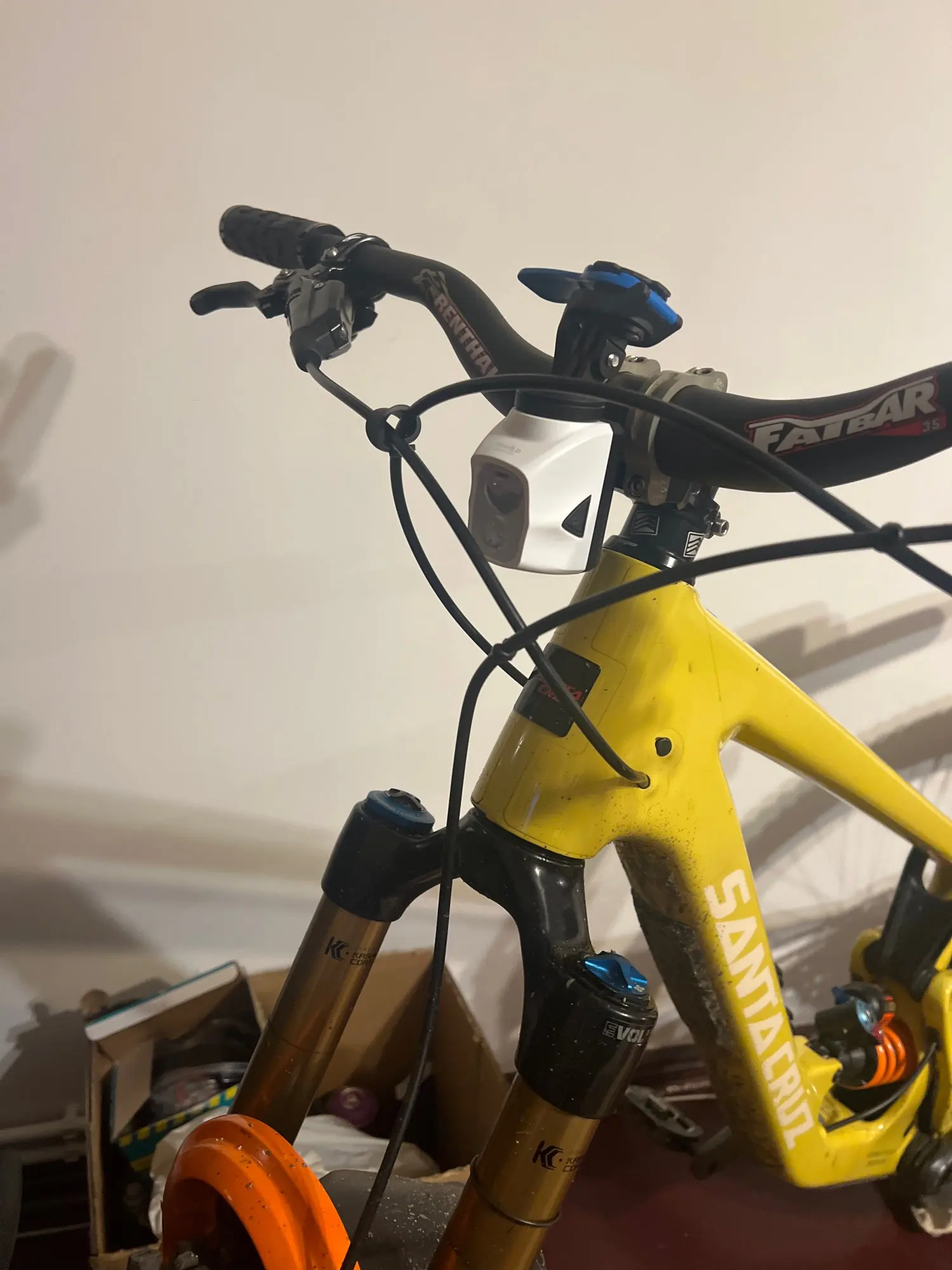

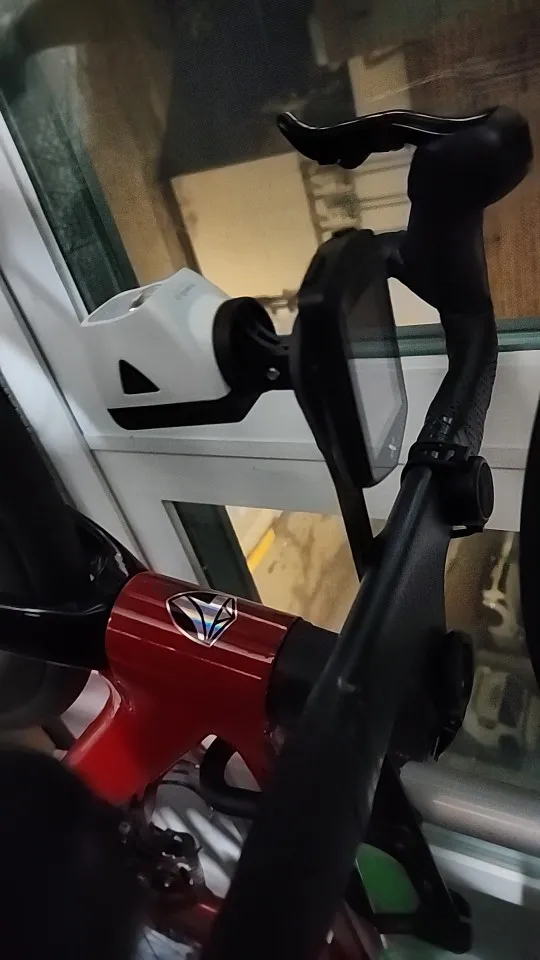

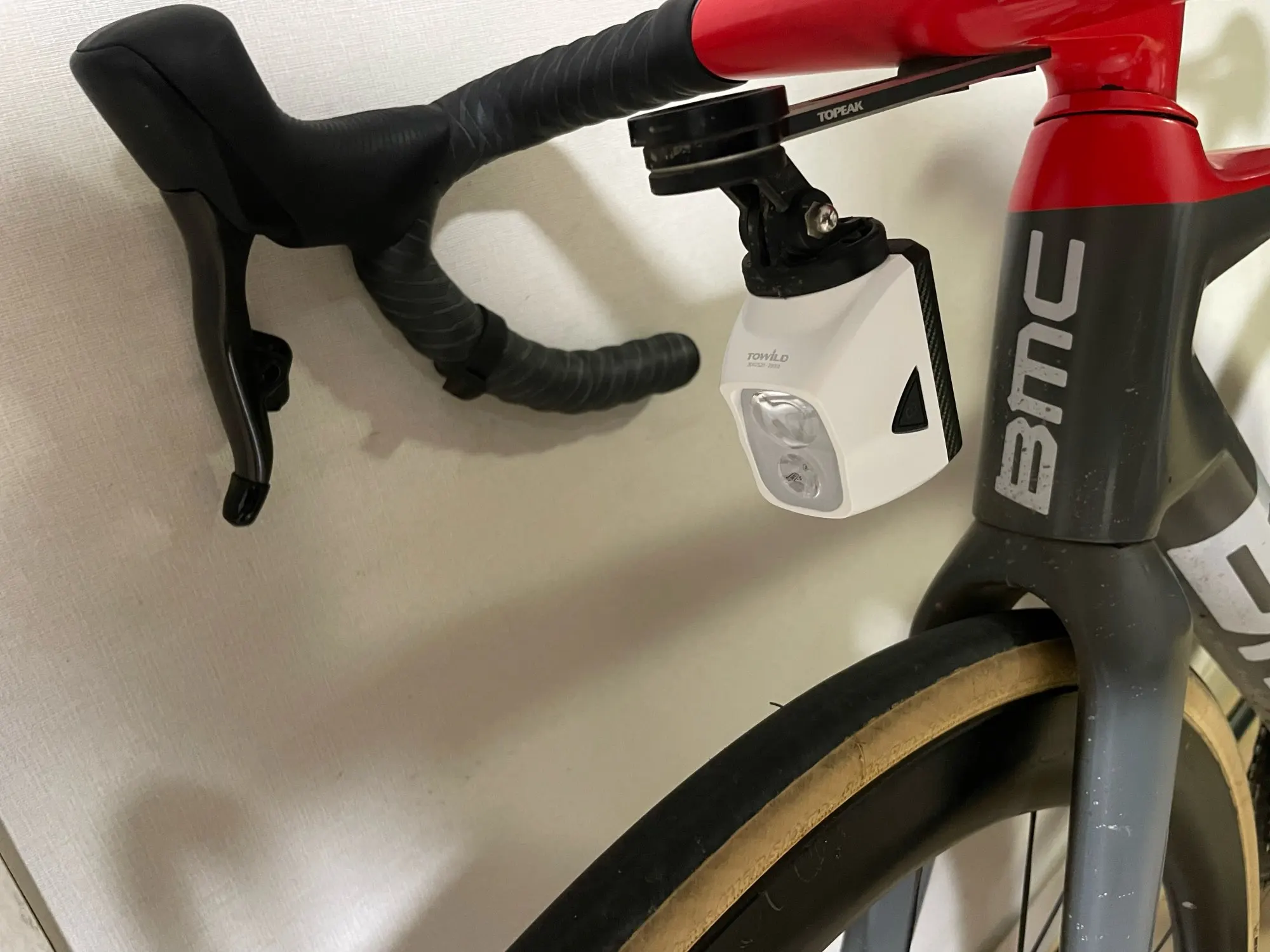

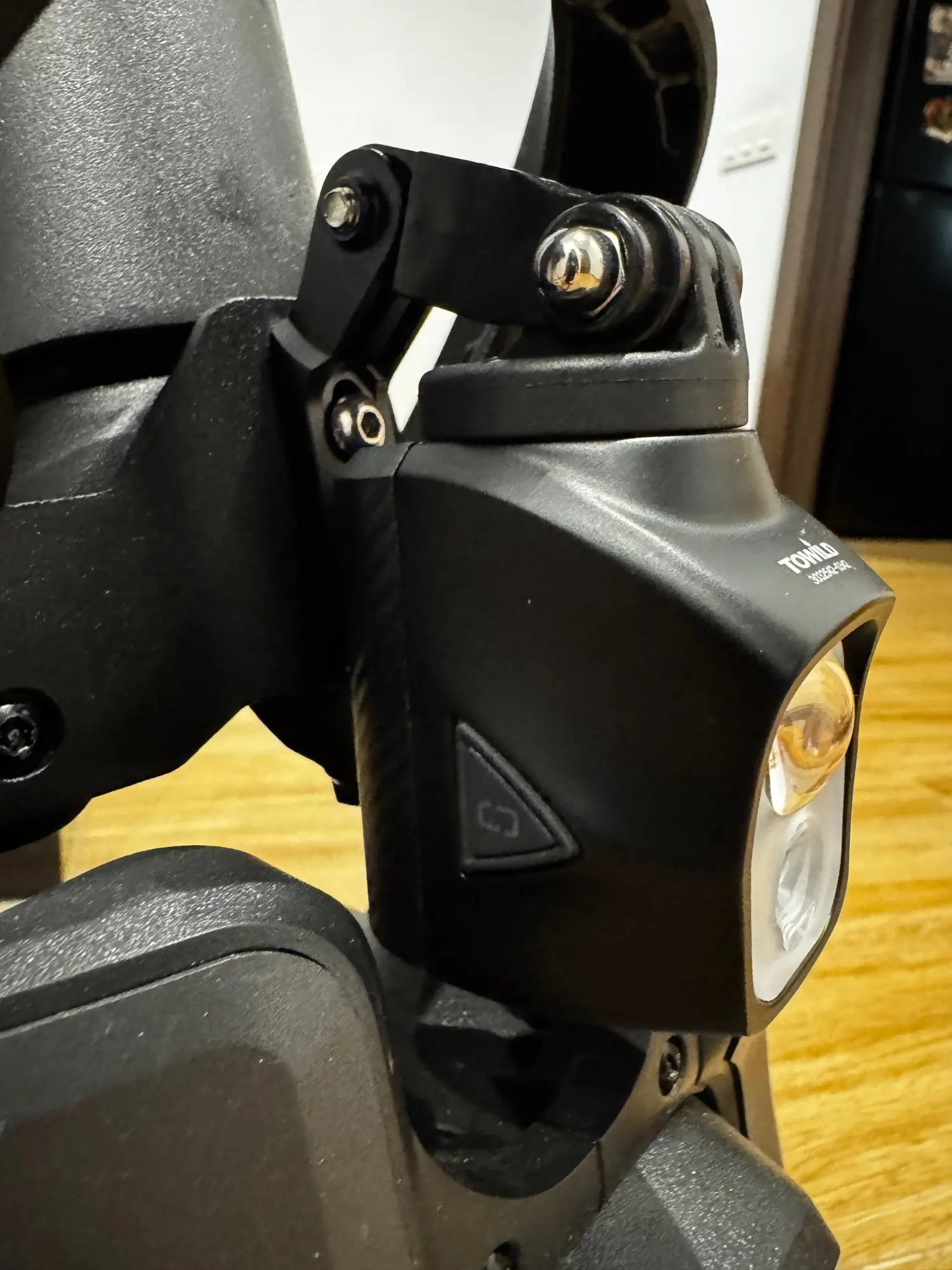

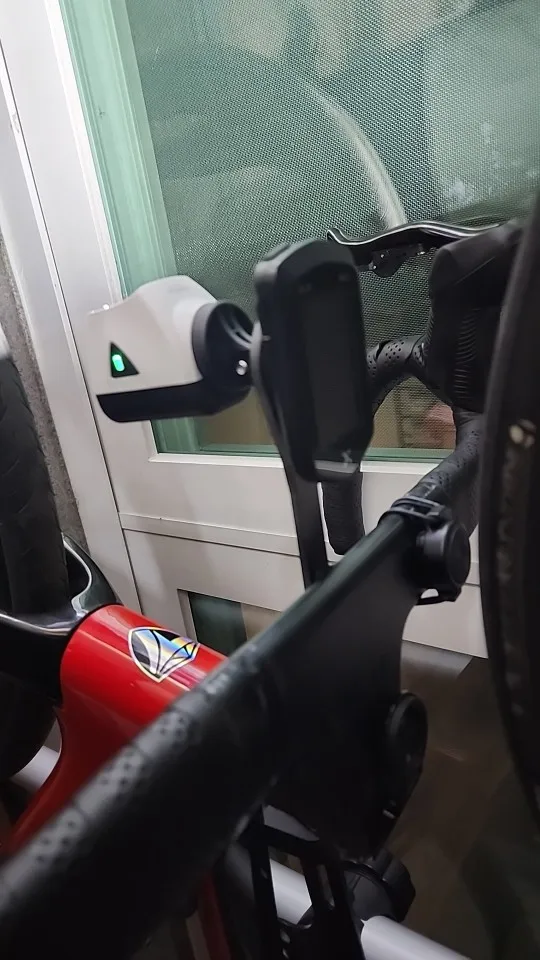

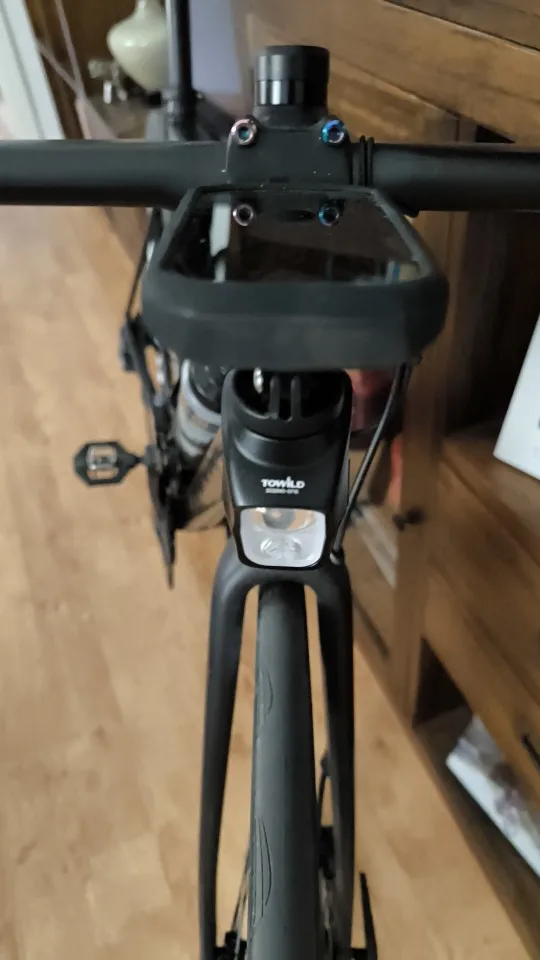

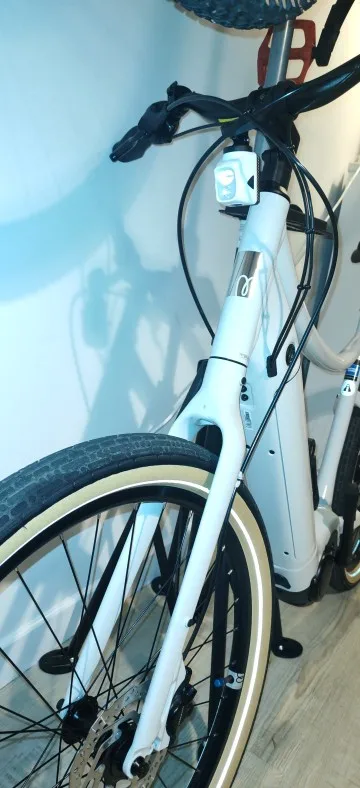

Mount-ready: Compatible with bike computers (stem/bar mounting)
-

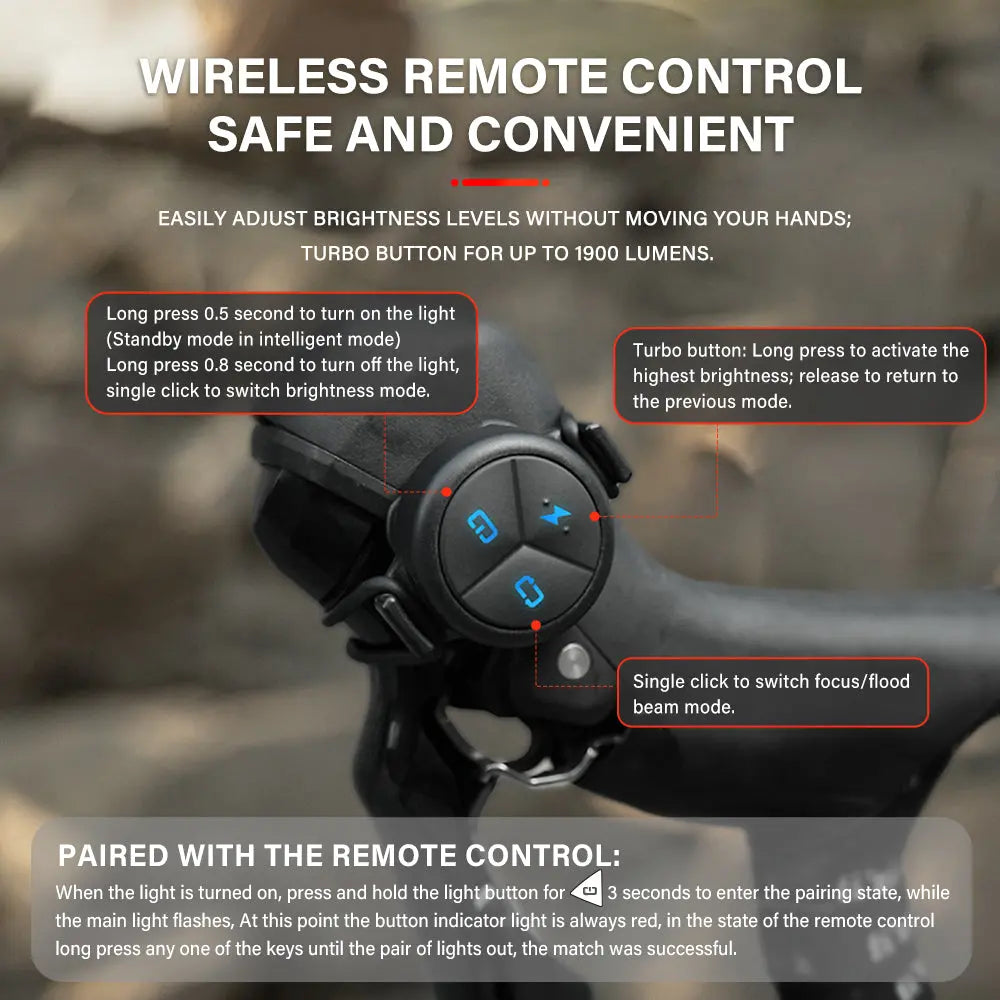

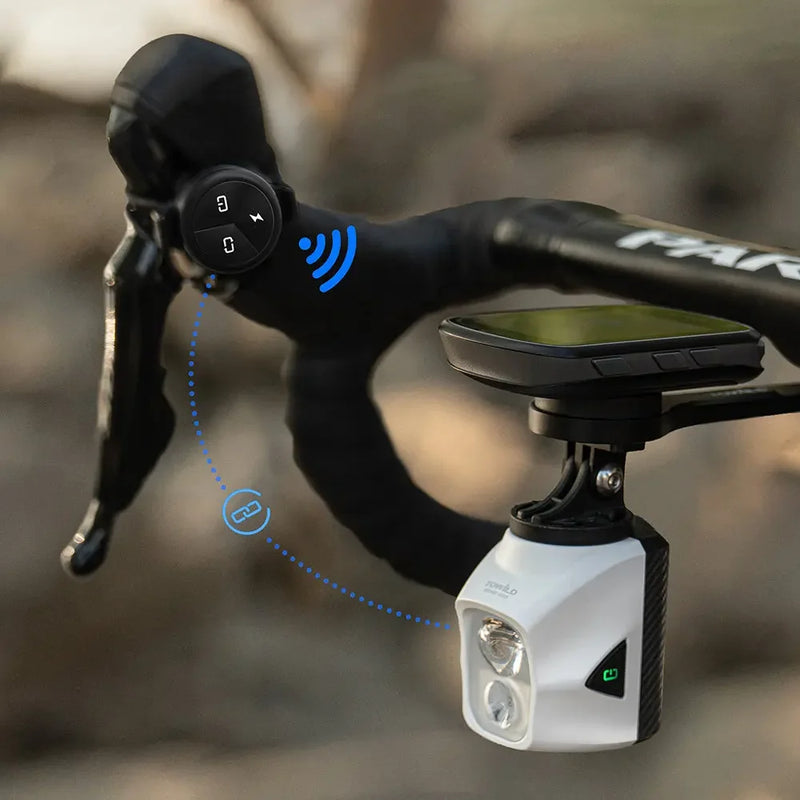

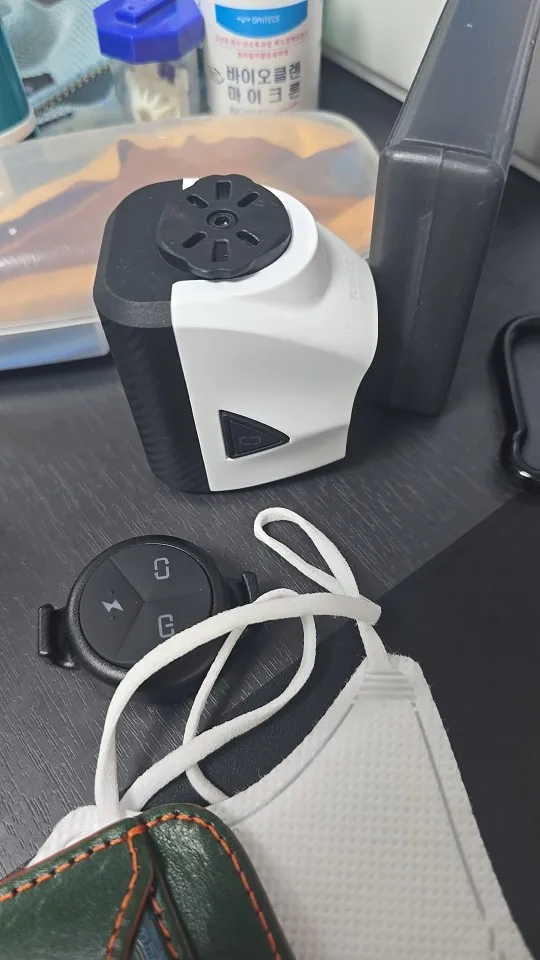

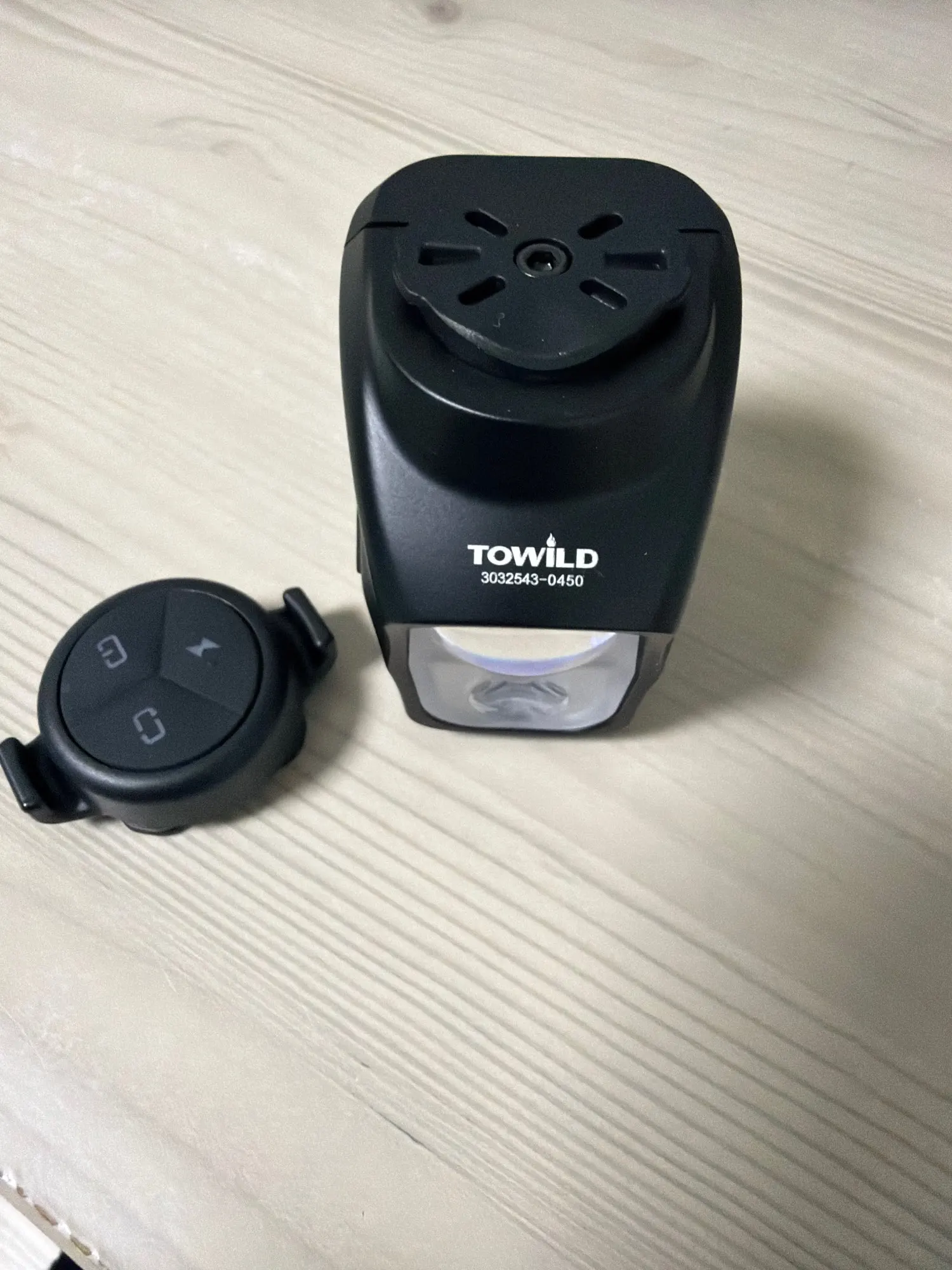

Wireless remote: Instantly boosts to 1900 lumens with one click
-
Auto start/stop & temperature control
-

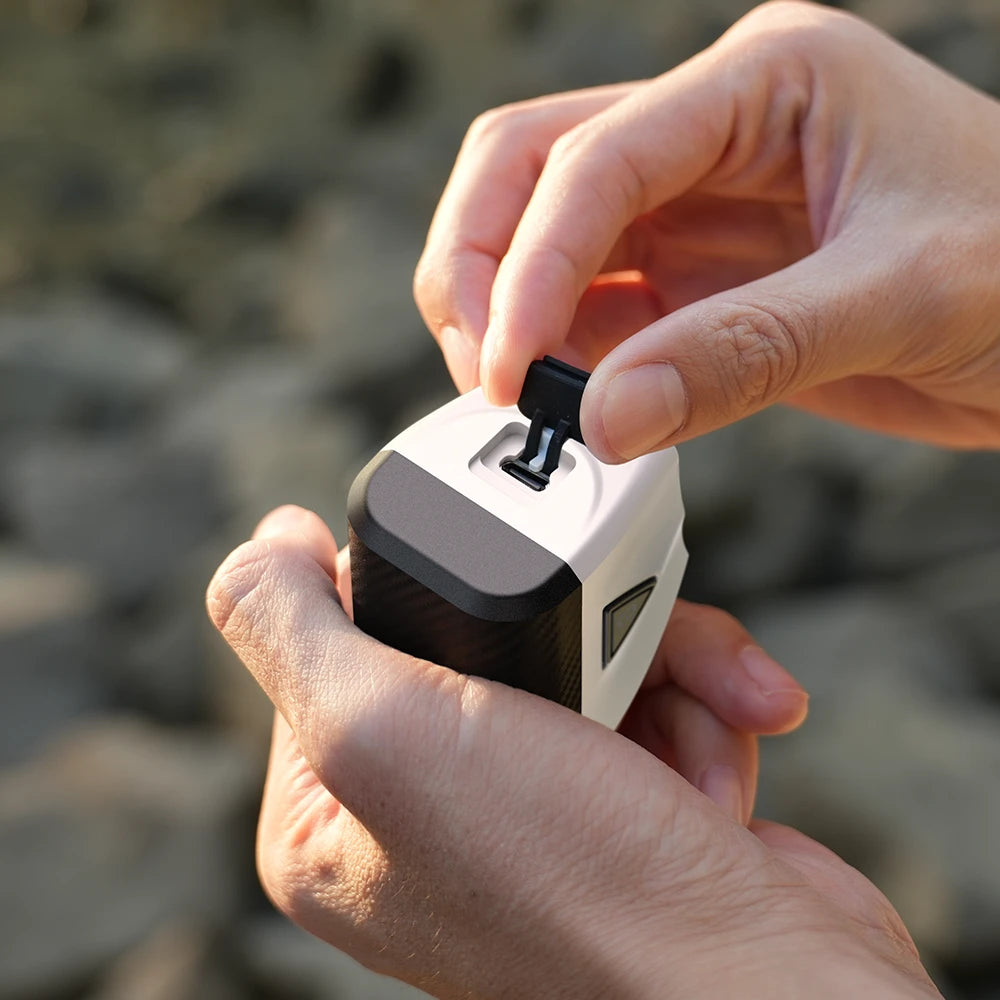

TYPE-C dual-port (charge devices/discharge to 2A)
-
Real-time battery indicator
-
Battery protection: Prevents overcharge/over-discharge
Technical Parameters (ANSI/NEMA FL1 Standard)
| Mode | Brightness | Runtime | Max Throw |
|---|---|---|---|
| High Beam | |||
| - Turbo | 1700 lm | 2h* | 200m |
| - Medium | 800 lm | 4h | |
| - Low | 400 lm | 7h | |
| Low Beam | |||
| - High | 800 lm | 3h20m | |
| - Low | 400 lm | 6h | |
| - Pulsing | 200 lm | 18h | |
| Remote Boost | 1900 lm | - | - |
Durability:
-
Drop-resistant: 1.2m
-

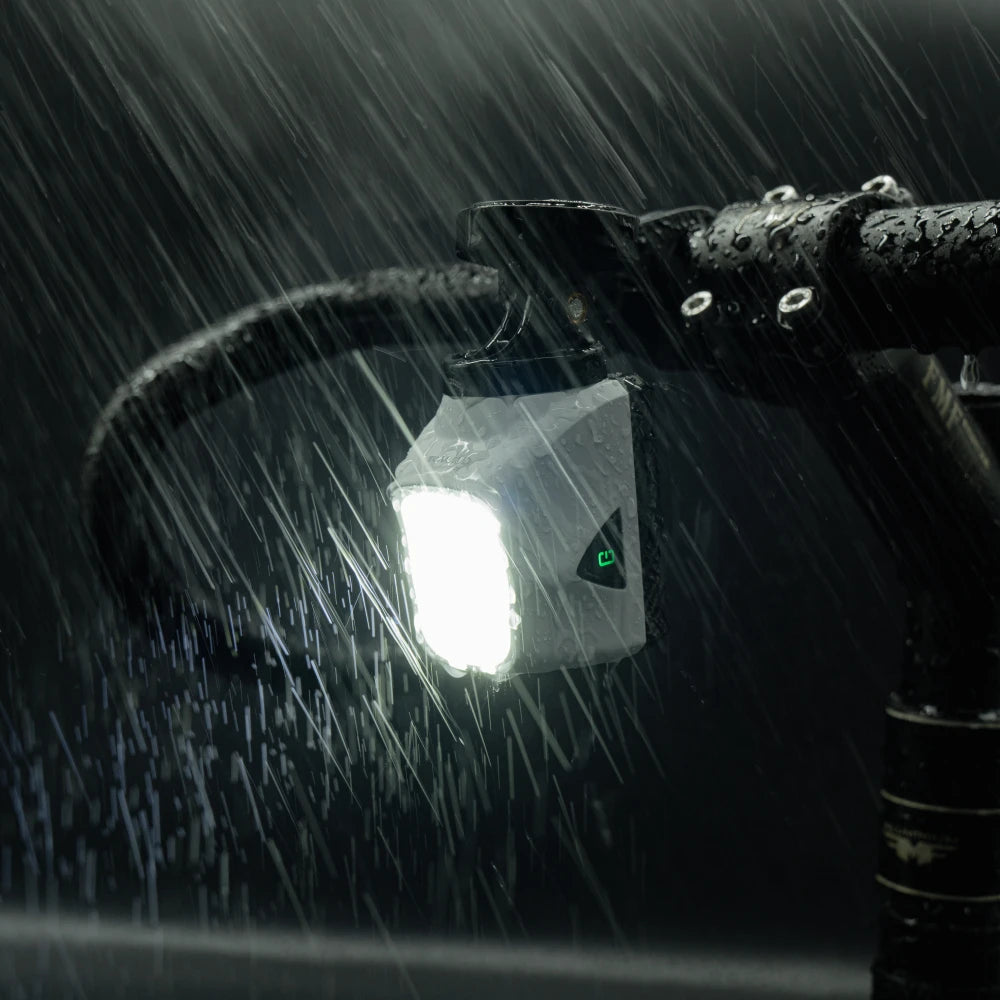

Waterproof: IPX6
*Note: Lab tested with 4000mAh battery by TOWILD. Real-world performance may vary.*
User Manual
Basic Operation
-
Power on/off: Hold button 0.5s
-
Mode cycling: Single click toggles brightness
-

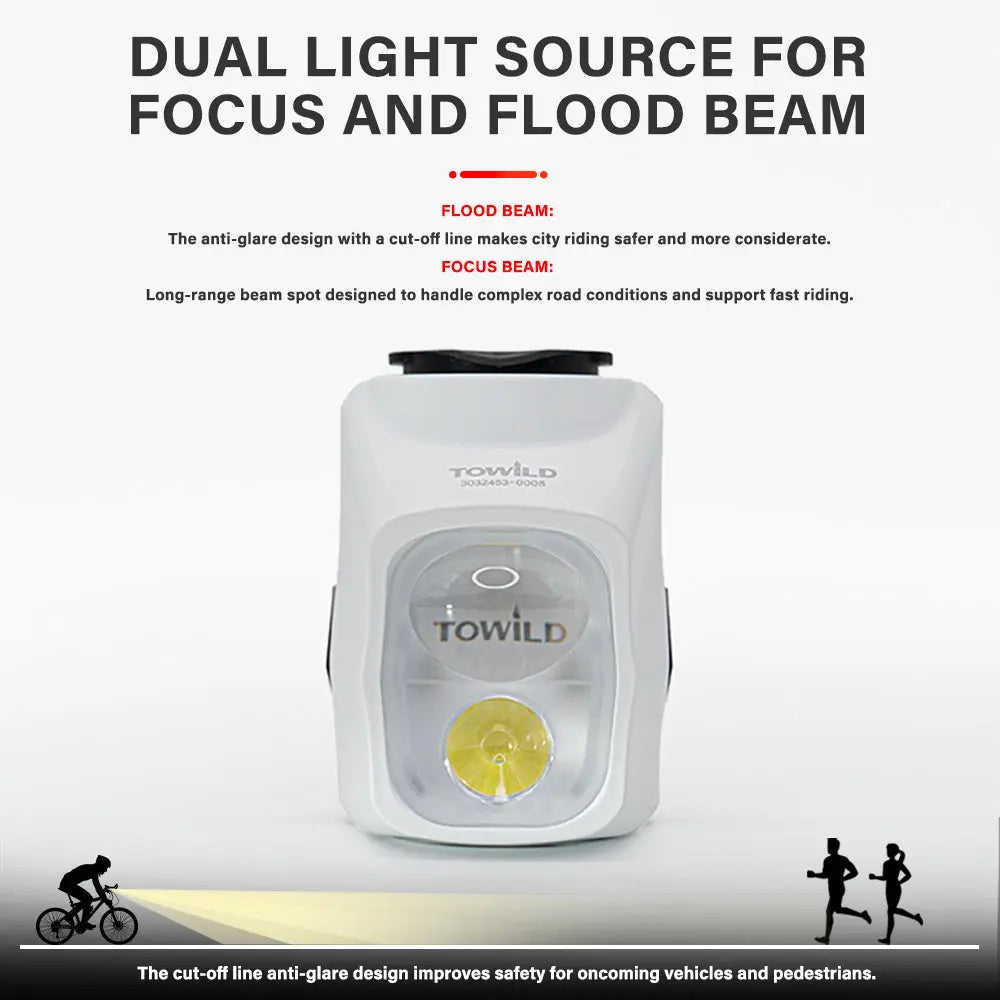

Beam switching: Single click swaps high/low beam
Smart Mode vs Manual Mode
-
Switch modes: Hold button 0.5s when off (Blue LED=Smart, Green=Manual)
-
Smart standby: Auto-off after 120s inactivity, reactivates via vibration/remote (within 1h)
Safety Features
-
Overheat protection: Auto dims at 65°C
-
Battery indicator:
-
Smart Mode: Solid blue (30-100%), Slow blink (10-29%), Fast blue/red blink (<10%)
-
Manual Mode: Solid green (30-100%), Slow blink (10-29%), Fast green/red blink (<10%)
-
-
Low battery alert: Blinks 4x every 30s when <10%, auto shutdown at 2.8V
Charging/Discharging
-
Charging: 0°C-45°C environment, 4h full charge (2A max)
-
Status: Pulsing red (charging), Solid blue/green (full)
-
-

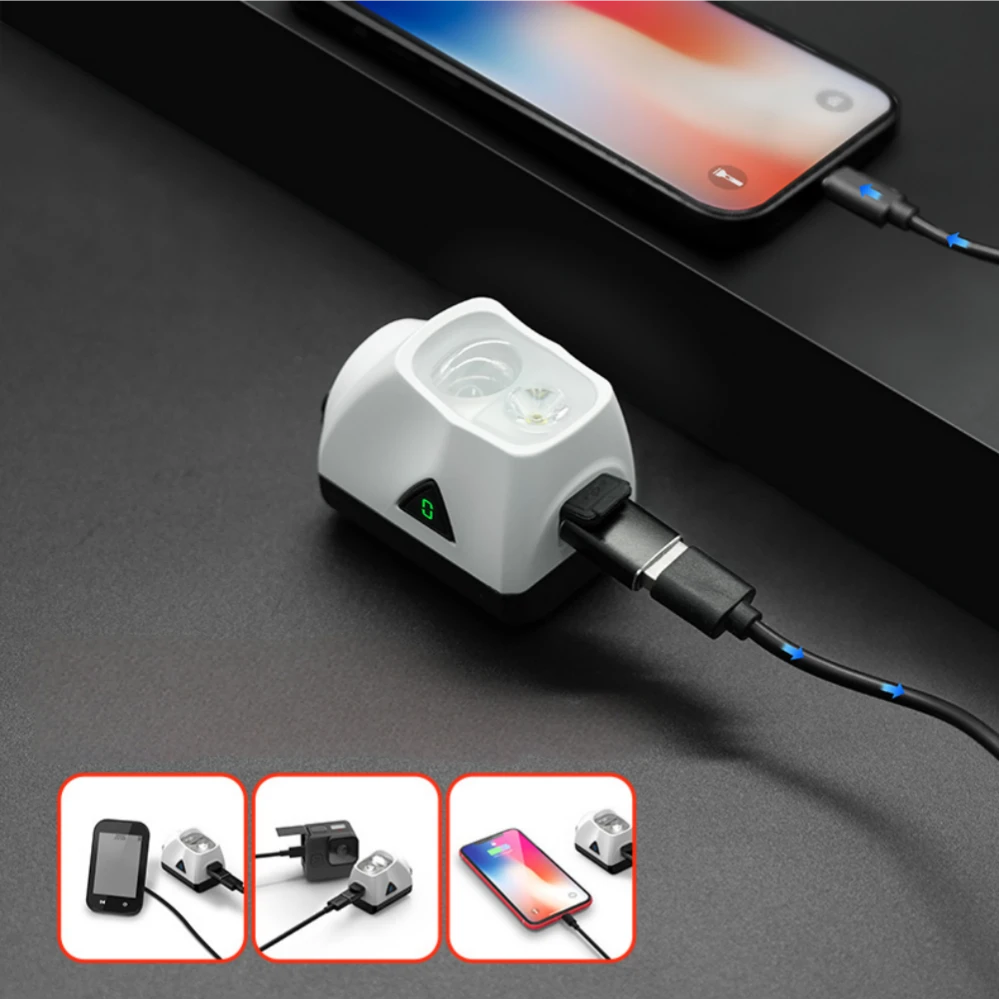

Device charging: Outputs 2A via TYPE-C (compatible with phones/lights)
⚠️ Warning: Do not stare directly at light source. 1900-lumen boost may temporarily blind.
